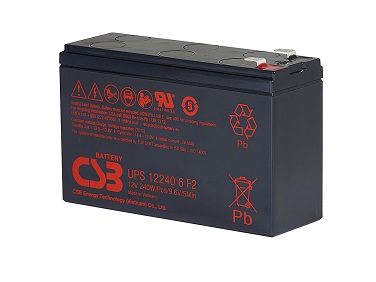

UPS122406

发布时间：2020-12-07 10:31  浏览：

UPS122406

12 V 40.0w/cell UPS 122406 use the latest wafer-thin plate technology to provide optimum high-rate (5-min) performance, up to 5 years of standby service.

规格书

局数

6

电压值

12 V

安培数	40W @ 5min-rate to 1.60V per cell @25°C (77°F)

重量	Approx . 1.46 Kg (3.22 lbs)

最大放电电流

100/130A (5sec)

内阻	Approx . 33.5 mΩ

温度工作范围

Discharge：-15℃~50℃ (5°F~122°F) Charge：-15℃~40℃ (5°F~104°F) Storage：-15℃~40℃ (5°F~104°F)

一般使用温度工作范围

25°C ±3°C (77°F ± 5°F)

浮充电压	13.5 to 13.8 VDC/unit Average at 25°C (77°F)

议充电最大电流值

2.0A

均充电压	14.4 to 15.0 VDC/unit Average at 25°C (77°F)

自放电	Less than 10% after 90 days, can be stored up to 6 months at 25℃ (77℉)

端子	F1/F2 terminal -Faston Tab 187/250

电槽组材质

ABS (UL 94-HB) & Flame Retardant (94-V0) available upon request

---
