MSV-200

发布时间：2020-12-07 10:14  浏览：

MSV-200

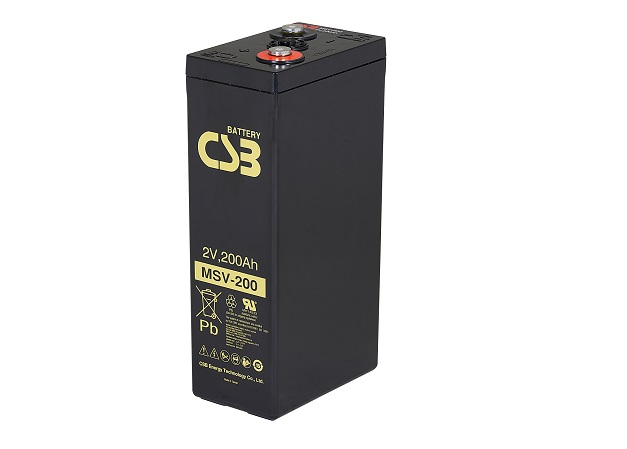

2 V 200.0Ah MSV-200 is a Long service life battery up to 15years expected life under normal float charge. As with all CSB bbrand atteries, all are rechargeable, highly efficient, leak proof and maintenance free.

规格书

局数

1

电压值

2 V

安培数	200 Ah @ 10hr-rate to 1.80V per cell @25 ℃(77°F)

重量	Approx. 13.6 Kg (29.97 lbs)

最大放电电流

1200A (5sec)

内阻	Approx. 0.59 mΩ

温度工作范围

Discharge：-20℃~50℃ (-4°F~122°F) Charge：0℃~40℃ (32°F~104°F) Storage：-20℃~40℃ (-4°F~104°F)

一般使用温度工作范围

25℃±3℃ (77°F±5°F)

浮充电压	2.21 ~ 2.25 VDC/Unit Average at 25℃ (77℉)

建议充电最大电流值

60 A

自放电	Less than 10% after 90 days, can be stored up to 6 months at 25℃ (77℉)

端子	I4 thread copper alloy terminal to accept M8 bolt

电槽组材质

Flame Retardant ABS (UL 94-V0)

---
