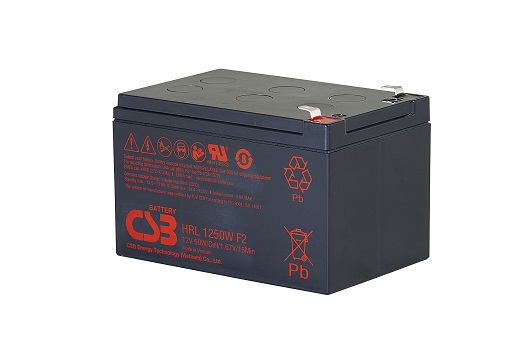

HRL1250W

发布时间：2020-12-04 14:34  浏览：

HRL1250W

12 V 50.0w/cell HRL 1250W is specially designed for high efficient discharge and long life.application. It\'s characteristics are small volume, light weight and high discharge efficiency. It can be used up to 8 years in standby service.

规格书

局数

6

电压值

12 V

安培数	50W @15 minute-rate to 1.67V per cell @25 ℃ (77 °F)

重量(kg)

Approx. 3.90 kg(8.60 lbs)

最大放电电流5秒(A)

130A (5sec)

内阻(mΩ)

Approx. 15.0 mΩ

温度工作范围

Discharge：-15℃~50℃(5°F~122°F) Charge：-15℃~40℃(5°F~104°F) Storage：-15℃~40℃(5°F~104°F)

一般使用温度工作范围

25 ℃± 3 ℃ (77 °F± 5 °F )

浮充使用充电条件

13.5 to 13.8 VDC/unit Average at 25 ℃ (77 °F)

建议充电最大电流

5.0A

均充使用充电条件

14.4 to 15.0 VDC/unit Average at 25 ℃ (77 °F)

自放电	It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃

端子	F2-Faston Tab 250

电槽组材质

ABS(UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request.

---
