HR12120W

发布时间：2020-12-04 11:11  浏览：

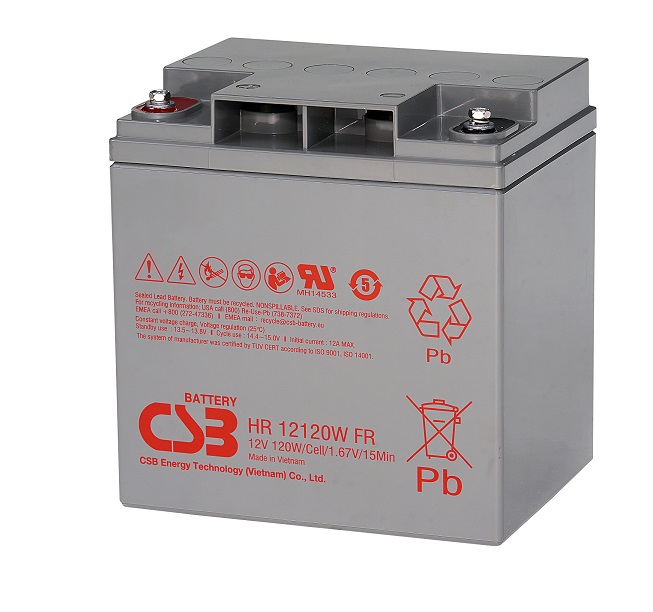

HR12120W

12 V 120.0w/cell HR 12120W is designed specially for high efficient discharge application. It\'s characteristics are small volume, light weight and high discharge efficiency. It can be used up to 5 yeas in standby service.

规格书

局数

6

电压值

12 V

安培数	120W @ 15 minute-rate to 1.67V per cell @ 25°C (77°F)

重量(kg)

Approx. 10.2 Kg (22.48 LBS)

最大放电电流5秒(A)

225A (5 Sec)

内阻(mΩ)

Approx. 8.2 mΩ

温度工作范围

Discharge：-15℃~50℃(5°F~122°F) Charge：-15℃~40℃(5°F~104°F) Storage：-15℃~40℃(5°F~104°F)

一般使用温度工作范围

25°C ± 3°C (77°F ± 5°F)

浮充使用充电条件

13.5 to 13.8 VDC/Unit Average at 25°C (77°F)

建议充电最大电流

12.0 A

均充使用充电条件

14.4 to 15.0 VDC/Unit Average at 25°C (77°F)

自放电	It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃

端子	I1-Thread lead alloy recessed terminal to accept M5 bolt

电槽组材质

ABS(UL94-HB) & Flammability resistance of(UL94-V0) can be available upon request.

---
