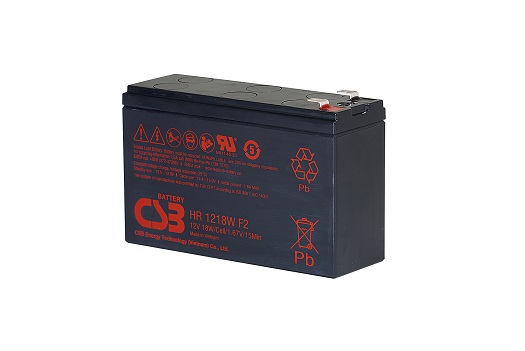

HR1218W

发布时间：2020-12-04 11:03  浏览：

HR1218W

12 V 18.0w/cell HR 1218W is specially designed for high efficient discharge application. Its characteristics are small volume, light weight and high discharge efficiency. It can be used up to 5 yeas in standby service.

规格书

局数

6

电压值

12 V

安培数	18W @ 15min-rate to 1.67V per cell @25 (77 )

重量(kg)

Approx. 1.53 kg (3.37lbs)

最大放电电流5秒(A)

130A (5sec)

内阻(mΩ)

Approx. 28.5mΩ

温度工作范围

Discharge：-15℃~50℃(5°F~122°F) Charge：-15℃~40℃(5°F~104°F) Storage：-15℃~40℃(5°F~104°F)

一般使用温度工作范围

25℃±3℃ (77°F±5°F)

浮充使用充电条件

13.5 to 13.8 VDC/unit Average at 25℃ (77°F)

建议充电最大电流

1.8A

均充使用充电条件

14.4 to 15.0 VDC/Unit Average at 25℃(77°F)

自放电	It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃

端子	F2-Faston Tab250

电槽组材质

ABS(UL 94-HB) & Flammability resistance of (UL 94-V0) can be available upon request.

---
