GPL12750

发布时间：2020-12-04 10:20  浏览：

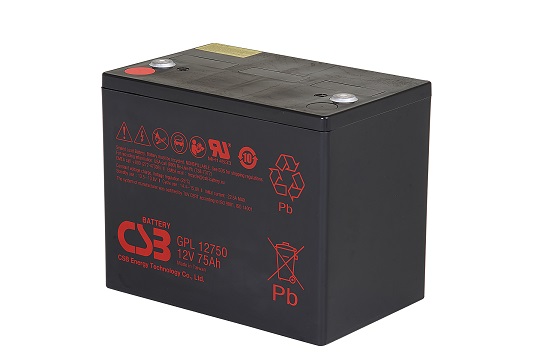

GPL12750

12 V 75.0Ah GPL 12750 is a general purpose battery up to 10 years expected life under normal float charge. As with all CSB batteries, all are rechargeable, highly efficient, leak proof and maintenance free.

规格书

局数

6

电压值

12 V

安培数	75Ah @ 20 hr-rate to 1.75V per cell @ 25°C (77°F)

重量(kg)

Approx. 25.6kg. (56.42 lbs.)

最大放电电流5秒(A)

800 A (5 sec.)

内阻(mΩ)

Approx. 4.0 mΩ

温度工作范围

Discharge：-15℃~50℃(5°F~122°F) Charge：-15℃~40℃(5°F~104°F) Storage：-15℃~40℃(5°F~104°F)

一般使用温度工作范围

25°C ± 3°C (77°F ± 3°F)

浮充使用充电条件

13.5 to 13.8 VDC/unit Average at 25°C (77°F)

建议充电最大电流

22.5 A

均充使用充电条件

14.4 to 15.0 VDC/unit Average at 25°C (77°F)

自放电	It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃

端子	I2-Thread lead alloy recessed terminal to accept M6 bolt

电槽组材质

Polypropylene(UL 94-HB) & Flammability resistance of (UL 94-V0) can be available upon request.

---
