GP1272 (12V28W)

发布时间：2020-12-04 09:22  浏览：

GP1272 (12V28W)

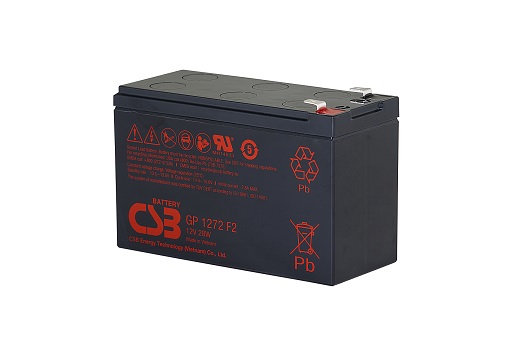

12 V 28.0w/cell GP1272 (12V28W) is a general purpose battery up to 5 years in standby service. As with all CSB batteries, all are rechargeable, highly efficient, leak proof and maintenance free.

规格书

局数

6

电压值

12 V

安培数	28W@15Min-rate to 1.67V per cell @ 25°C (77°F)

重量(kg)

Approx. 2.10kg. (4.63 lbs.)

最大放电电流5秒(A)

100A/130A (5sec.)

内阻(mΩ)

Approx. 19.8mΩ

温度工作范围

Discharge：-15℃~50℃(5°F~122°F) Charge：-15℃~40℃(5°F~104°F) Storage：-15℃~40℃(5°F~104°F)

一般使用温度工作范围

25°C ± 3°C (77°F ± 5°F)

浮充使用充电条件

13.5 to 13.8 VDC/unit Average at 25°C (77°F)

建议充电最大电流

2.80A

均充使用充电条件

14.4 to 15.0 VDC/unit Average at 25°C (77°F)

自放电	Less than 10% after 90days, can be stored up o 6 months at 25°C (77°F); Fully recharging is rquired before usage, and charged sooner if stored at higher temperature than 25°C (77°F).

端子	F1/F2-Faston Tab187/250

电槽组材质

ABS(UL94-HB) & Flam retardant(UL94-V0) available upon request.

---
