EVX12170

发布时间：2020-12-03 16:15  浏览：

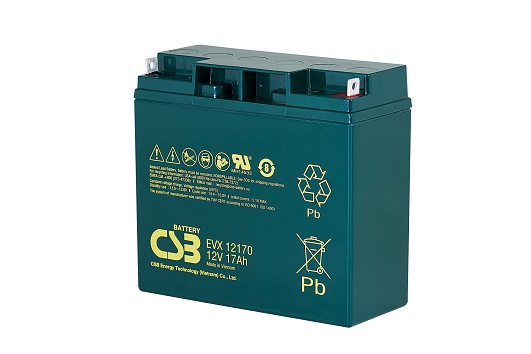

EVX12170

12 V 17.0Ah EVX 12170 is designed specially for electric vehicles, such as electric golf cart, electric wheelchair, mower, dust collector etc. It has high cycling life, high efficiency and long service life.

规格书

局数

6

电压值

12 V

安培数	17 Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F)

重量(kg)

Approx. 5.67 kg. (12.50 lbs.)

最大放电电流5秒(A)

230A (5 sec)

内阻(mΩ)

Approx. 13.3mΩ

温度工作范围

Discharge：-15℃~50℃(5°F~122°F) Charge：-15℃~40℃(5°F~104°F) Storage：-15℃~40℃(5°F~104°F)

一般使用温度工作范围

25°C ± 3°C (77°F ± 5°F)

浮充使用充电条件

13.5 to 13.8 VDC/unit Average at 25°C (77°F)

建议充电最大电流

5.1A

均充使用充电条件

14.4 to 15.0 VDC/unit Average at 25°C (77°F)

自放电	It should be more than 75% of the capacity that before storage after stocked for 6 months at ambient temp. 25℃

端子	B1/B3-L terminal to accept M5 nut & bolt

电槽组材质

ABS(UL94-HB)

---
