EVH12150

发布时间：2020-12-02 11:29  浏览：

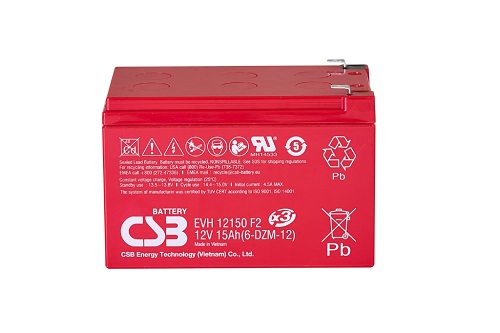

EVH12150

12 V 15.0Ah EVH 12150 (3nd generation) is designed specially with increase cycle performance and reliability from previous generations in electric vehicles application. It has high cycling life, high efficiency and long service life.

规格书

局数

6

电压值

12 V

安培数	15.0Ah @ 20hr-rate to 1.75V per cell @ 25°C (77°F)

重量(kg)

Approx. 4.60kg. (10.14 lbs.)

最大放电电流5秒(A)

180A (5 sec)

内阻(mΩ)

Approx. 10.5 mΩ

温度工作范围

Discharge：-15℃~50℃(5°F~122°F) Charge：-15℃~40℃(5°F~104°F) Storage：-15℃~40℃(5°F~104°F)

一般使用温度工作范围

25°C ± 3°C (77°F ± 5°F)

浮充使用充电条件

NOT RECOMMENDED

建议充电最大电流

4.5 A

均充使用充电条件

14.4 to 15.0 VDC/unit Average at 25°C (77°F)

自放电	Less than 10% after 90 days, can be stored up to 6 months at 25℃ (77℉)

端子	F2-Faston Tab 250

电槽组材质

ABS(UL94-HB)

---
